Hierarchy Selector and Viewer

Overview

This extension provides with the capability to add HierarchyViewer and HierarchySelector components to your app. They can be used to display hierarchical data structures.

HierarchySelector displays a tree-like view of the data structure, while HierarchyViewer displays a treemap to visualise the composition of a dataset.

Getting Started

Adding HierarchyViewer and HierarchySelector component to a page

The HierarchyViewer and HierarchySelector components take a hierarchy argument which can be a Node or a Variable or DerivedVariable containing a Node. In addition, HierarchySelector requires a value argument which must be a Variable. This variable will be updated with the currently selected node.

Below is a simple example of how you can add the components to your app:

from dara.core import Variable, ConfigurationBuilder, ComponentInstance, get_icon
from dara.components import Stack, HierarchyViewer, HierarchySelector, Node

# config
config = ConfigurationBuilder()

# Hierarchy we're displaying
hierarchy = Node(
    id=1,
    label='First',
    weight=1,
    children=[
        Node(
            id=2,
            label='Second',
            weight=1,
            children=[Node(id=4, label='Fourth', weight=1), Node(id=5, label='Fifth', weight=1)],
        ),
        Node(id=3, label='Third', weight=0.5),
    ],
)

# define a Variable which will store the selected variable
selection = Variable()


def selector_page() -> ComponentInstance:
    return Stack(HierarchySelector(hierarchy=hierarchy, value=selection))


def viewer_page() -> ComponentInstance:
    return Stack(HierarchyViewer(hierarchy=hierarchy))


config.add_page(name='Hierarchy Viewer', content=viewer_page(), icon=get_icon('eye'))
config.add_page(name='Hierarchy Selector', content=selector_page(), icon=get_icon('eyes'))

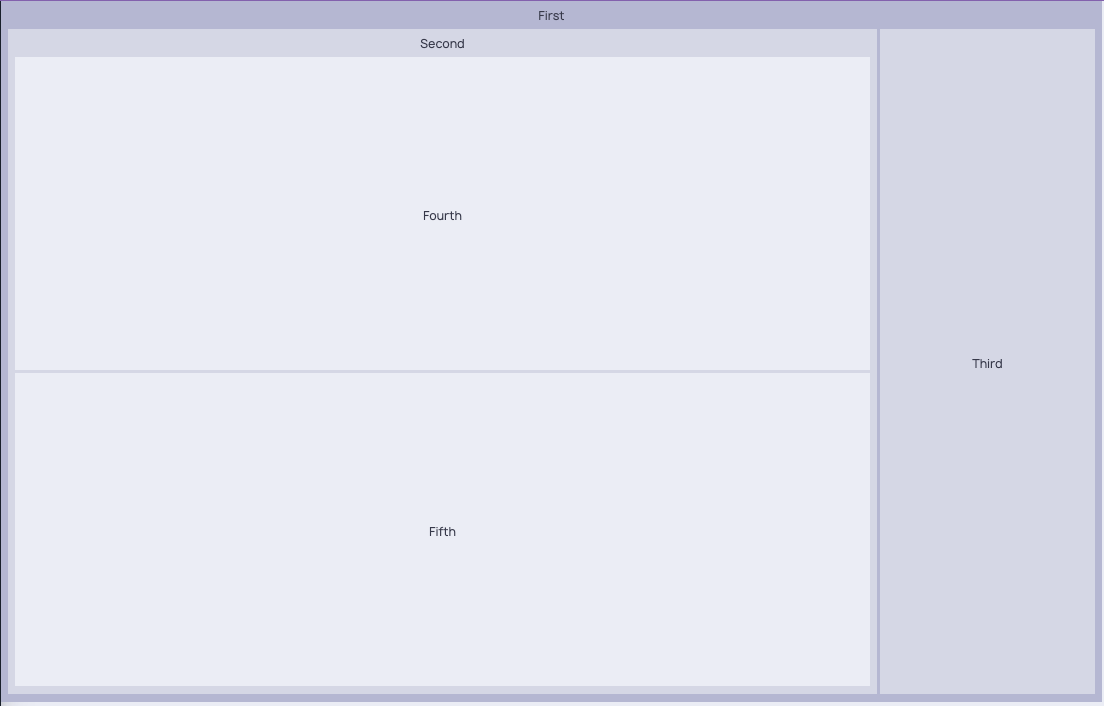

Hierarchy Viewer component

Hierarchy Selector component
